Leeze
Carbon BASIC DYNAMO
Carbon BASIC DYNAMO
CC 38 / Shimano
Leeze Bike Store
Hohenholter Straße 25
Leeze GmbH
48329 Havixbeck
Germany
Choose options
Leeze Carbon BASIC DYNAMO – now available in four variants: CC 38, CH 40, CC 50, and CH 50. Equipped with the high-quality SON hub dynamo, these wheelsets offer the perfect combination of performance, reliability, and durability for your allroad, gravel, or long-distance bike. Whether aerodynamic on the road or rugged off-road – the Carbon BASIC DYNAMO is your entry into the world of lightweight, power-generating carbon wheels.
- Third-generation Leeze BASIC carbon rims
- Very robust construction with especially strong bladed spokes
- High-quality and durable: SON hub dynamo in the front wheel and Leeze BASIC 2.0 rear hub
The characteristics, intended use, and recommended tire setups of the Leeze Carbon BASIC DYNAMO depend on the chosen rim variant. Detailed information can be found in the product descriptions of the corresponding BASIC wheelsets: CC 38 BASIC R, CH 40 BASIC GX, CC 50 BASIC R, CH 50 BASIC AR
Information about the SON 28 12 disc center lock hub dynamo
The SON 28 is a universally approved hub dynamo according to German road traffic regulations (StVO). Its rated output of 3 watts is already achieved at a speed of around 16 km/h.
This makes it ideal for situations where a lot of light is needed at low speeds or for powering/charging other devices.
Weight1 | 1780 | 1820 | 1850 | 1880g (5% Toleranz) | |
Rim material | Carbon | |
Rim type | 21-622 mit Haken | 25-622 ohne Haken | 21-622 mit Haken | 25-622 ohne Haken | |
Braking system | Scheibenbremse Centerlock | |
Rim height | 38 | 40 | 50 | 50 mm | |
Rim width | 28 | 33 | 28 | 33 mm | |
Inner rim width | 21 | 25 | 21 | 25 mm | |
Logos | schwarz, einlackiert | |
Tire type | Falt-/Drahtreifen, Tubeless Ready | Hookless Falt-/Drahtreifen, nur Tubeless Ready | Falt-/Drahtreifen, Tubeless Ready| Hookless Falt-/Drahtreifen, nur Tubeless Ready | |
Tire widths | 25-50 | 30-65 | 25-50 | 30-65 mm | |
Hub | SON 28 12 disc center lock VR & Leeze Disc BASIC 2.0 HR | |
Freewheel | Shimano 10-/11-/12-fach / SRAM 10-/11-fach, SRAM XDR 12-fach, Umbau auf Campagnolo und Campagnolo N3W möglich, Shimano Micro Spline | |
Axle standard | 12 mm Steckachse (12x100 mm, 12x142 mm) | |
Number of spokes | 24/24 | |
Spokes FW | Pillar Messerspeichen, 2x gekreuzt | |
Spokes RW | Pillar Messerspeichen, 2x gekreuzt | |
Weight limit | 120 kg Systemgewicht |
- Wheelset
- Valve stickers against rattling valves (2 pcs.)
- 2x tubeless rim tape (already fitted)

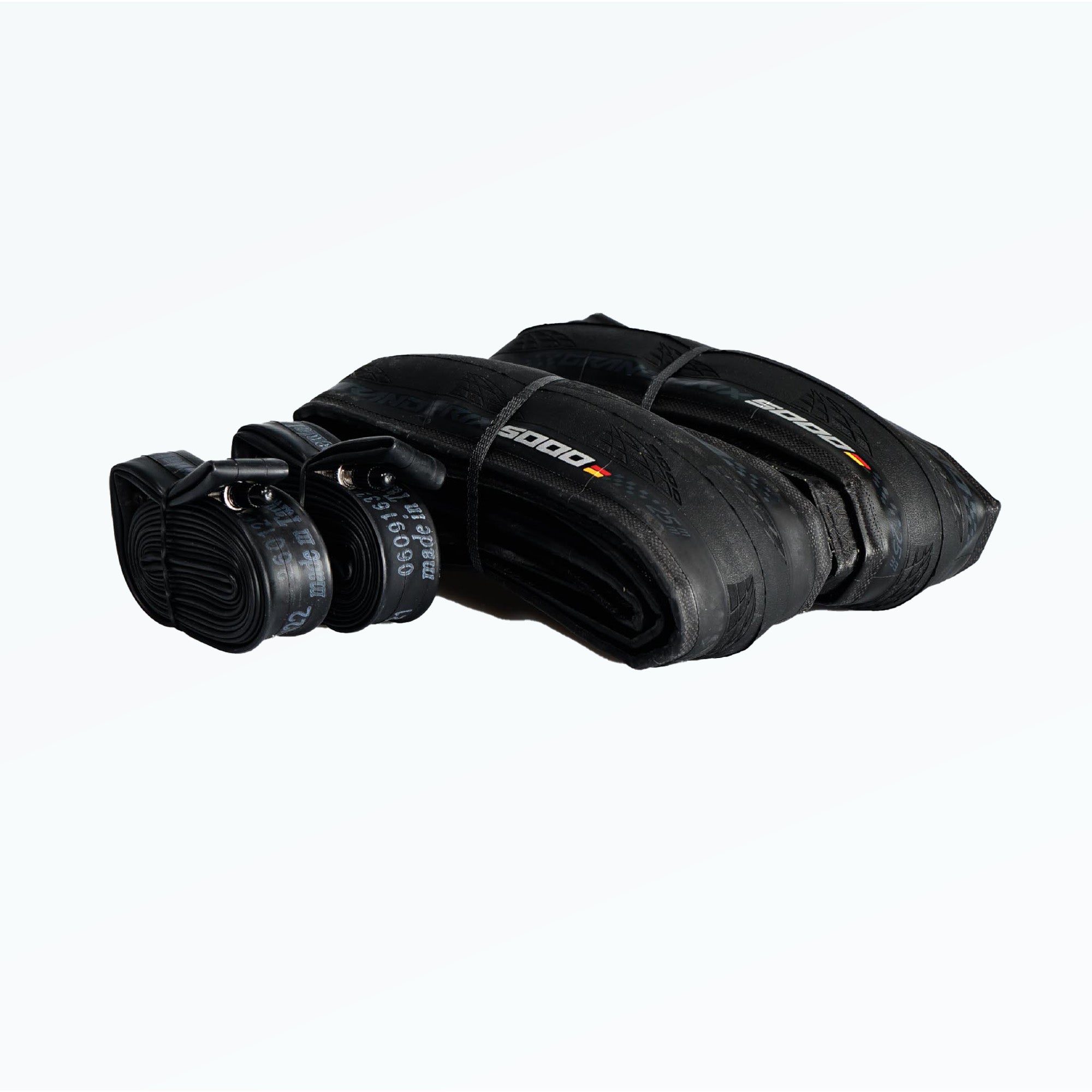

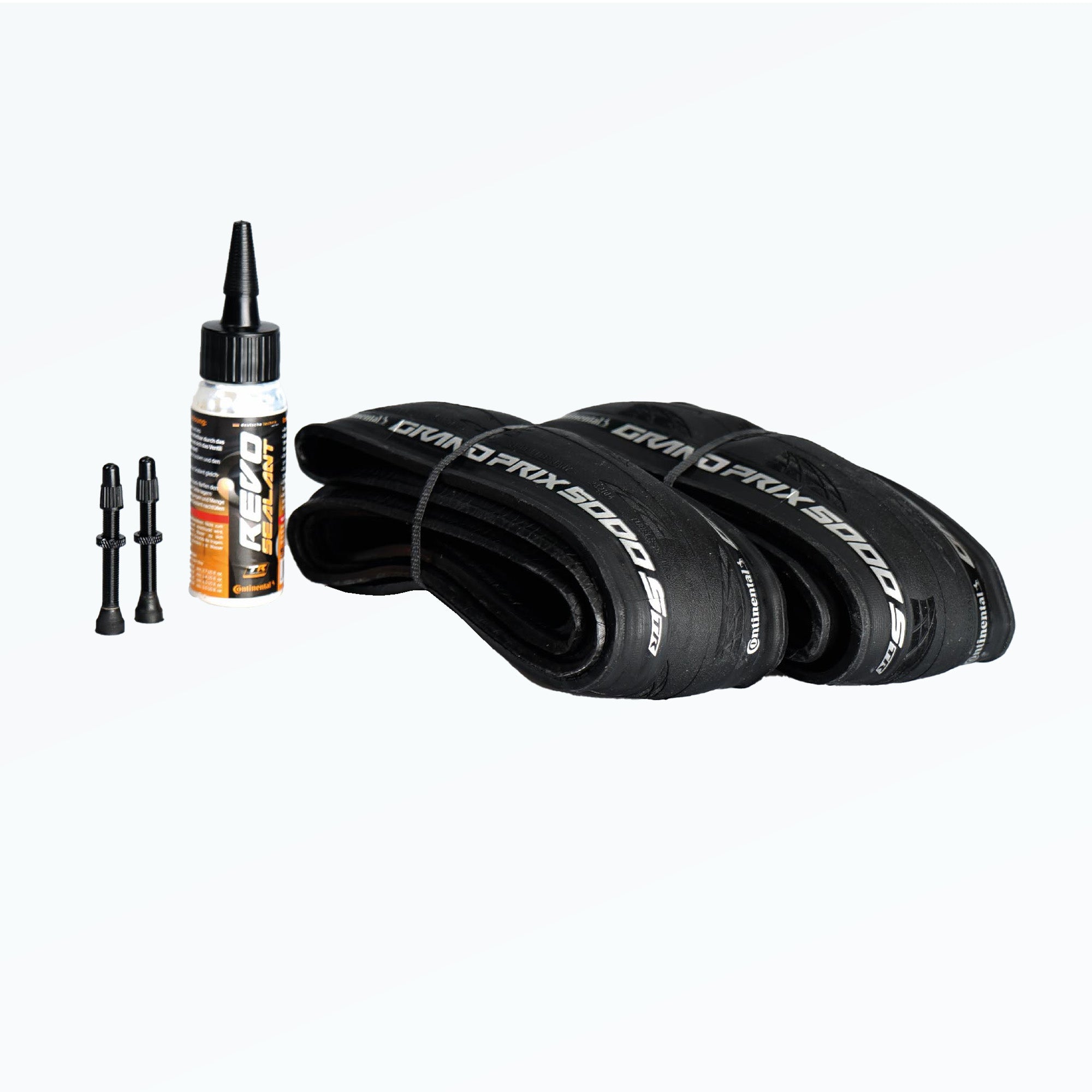

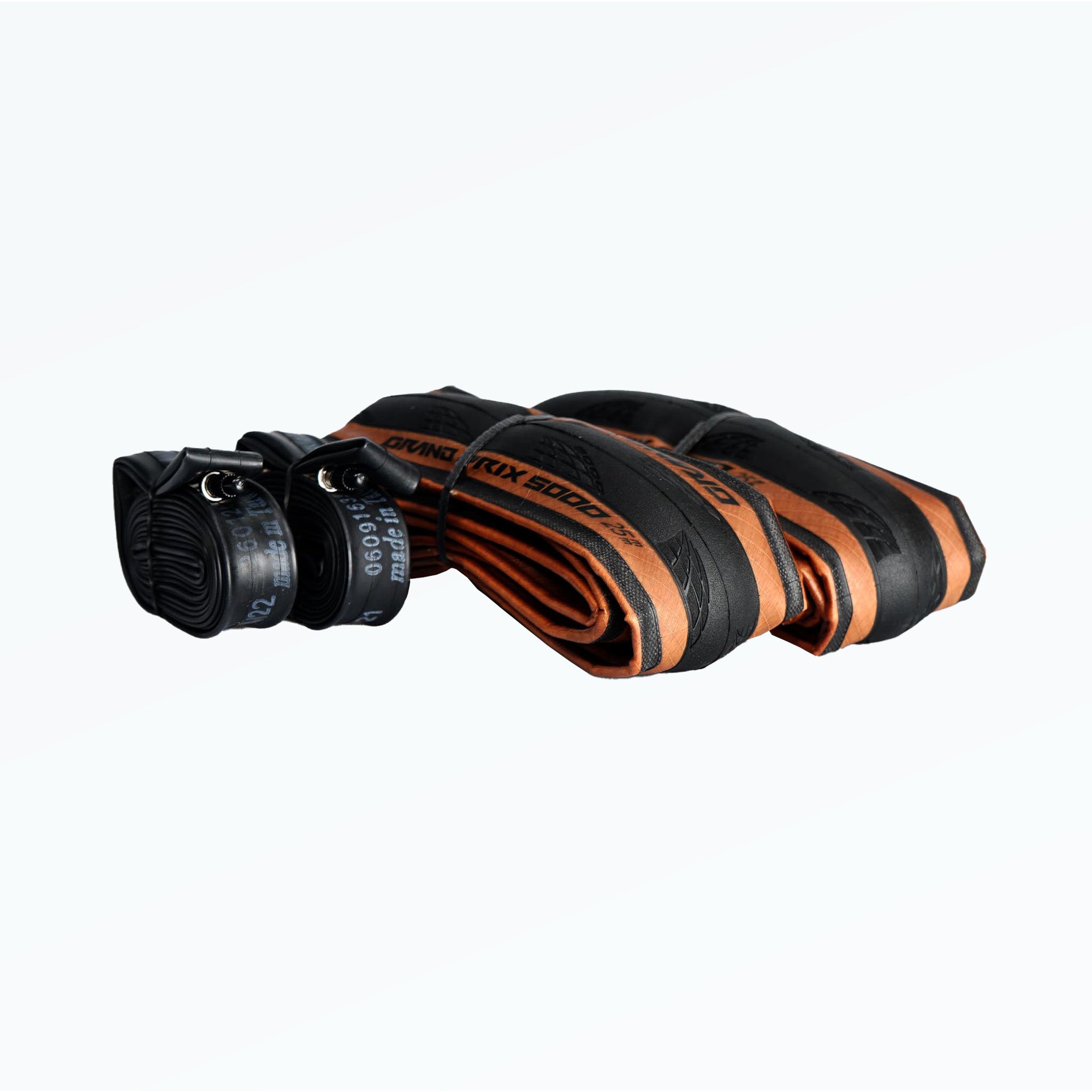

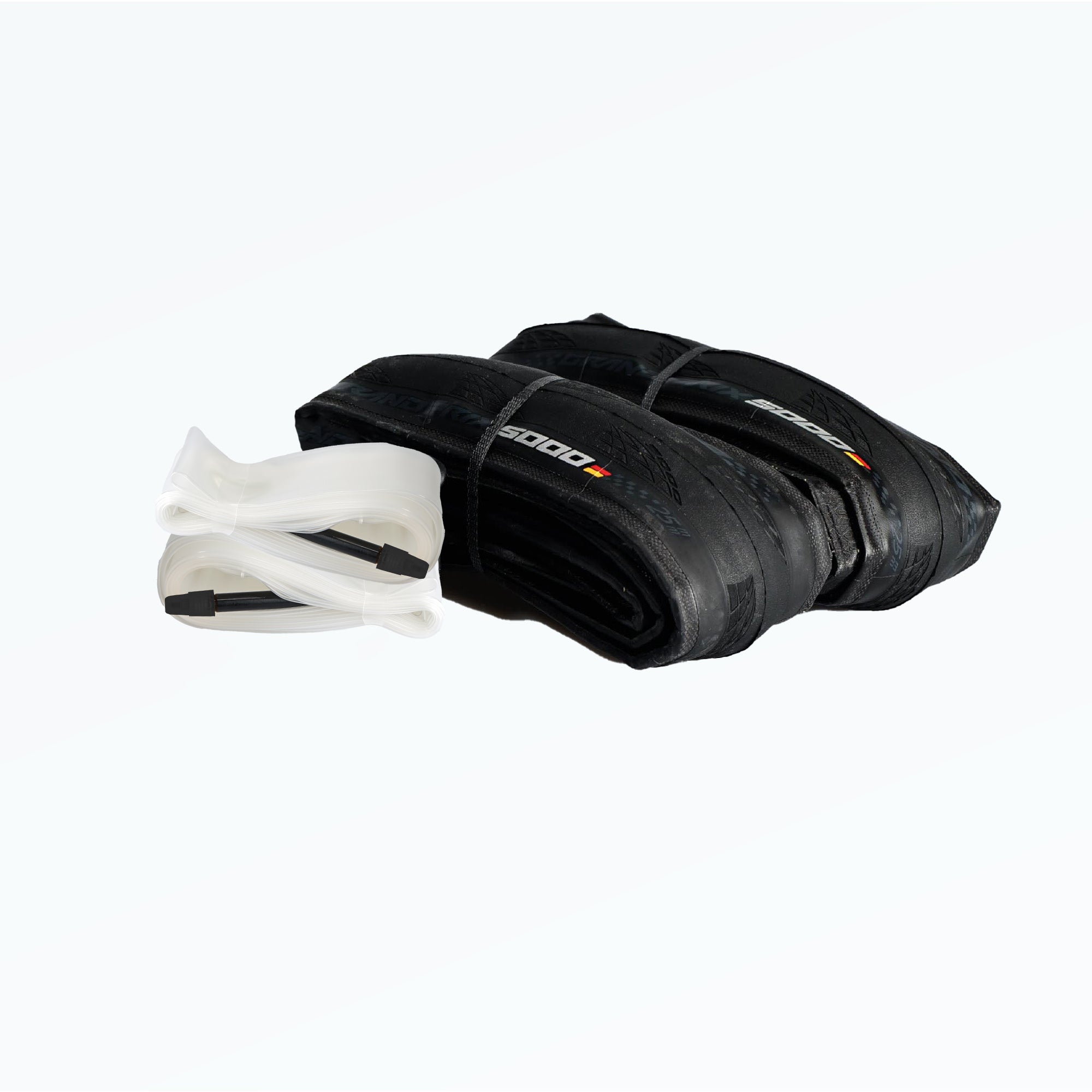

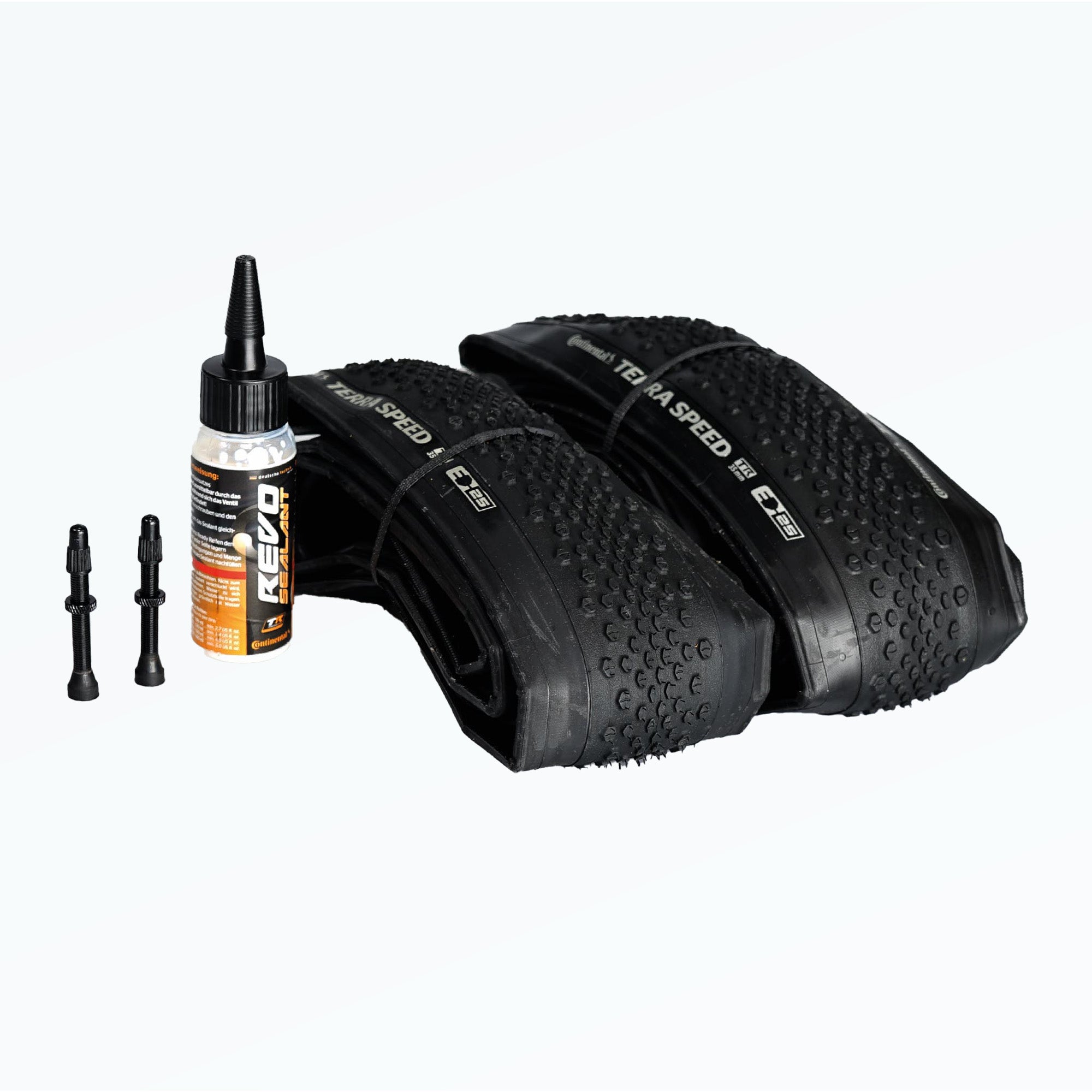

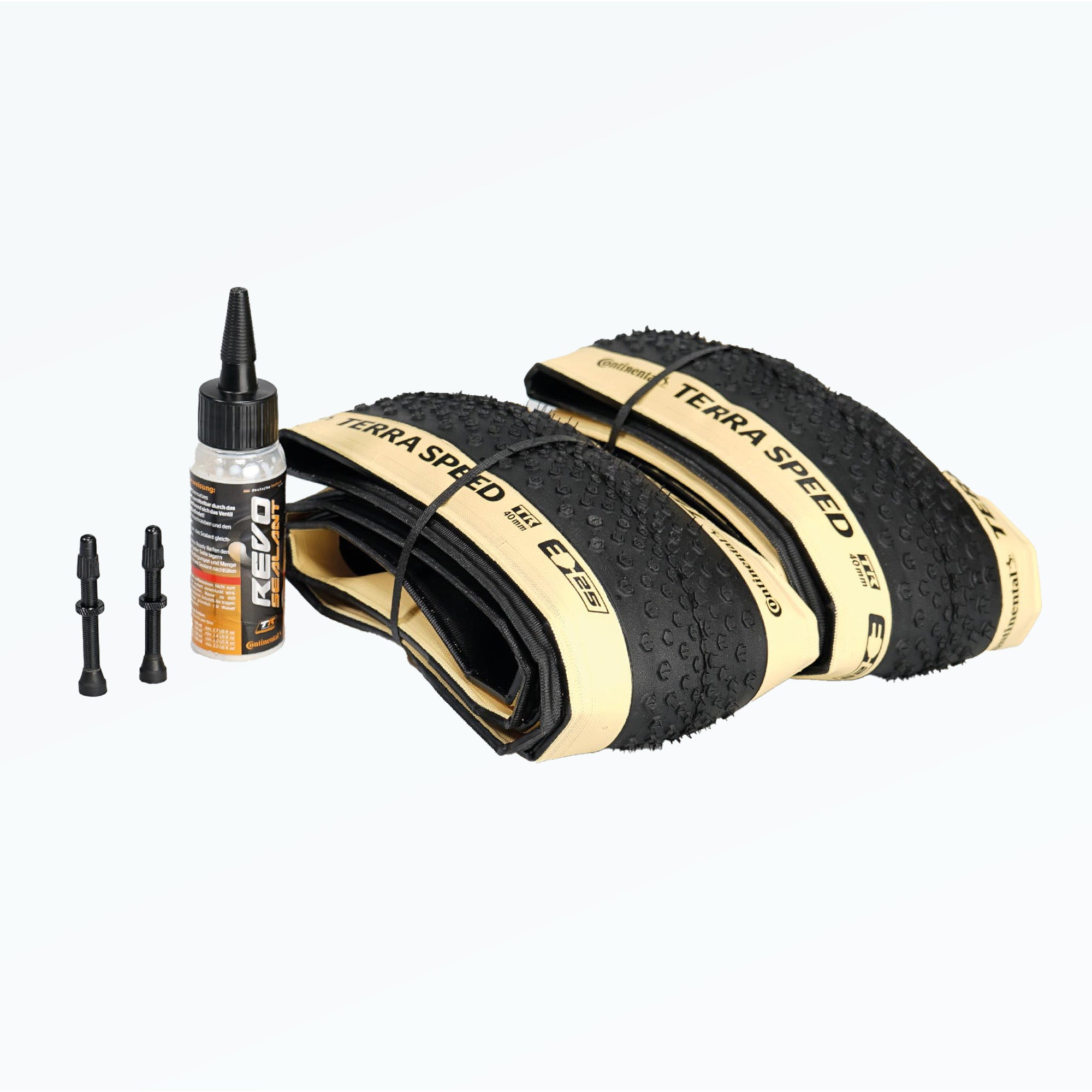

Passend zu deinem Laufradsatz erhältlich: Tubeless valves, Bereifungspakete, brake rotors und cassettes.
