AH 35 COMP AR SON 28 DYNAMO
AH 35 COMP AR SON 28 DYNAMO
Standard / Shimano
Leeze Bike Store
Hohenholter Straße 25
Leeze GmbH
48329 Havixbeck
Germany
Select options

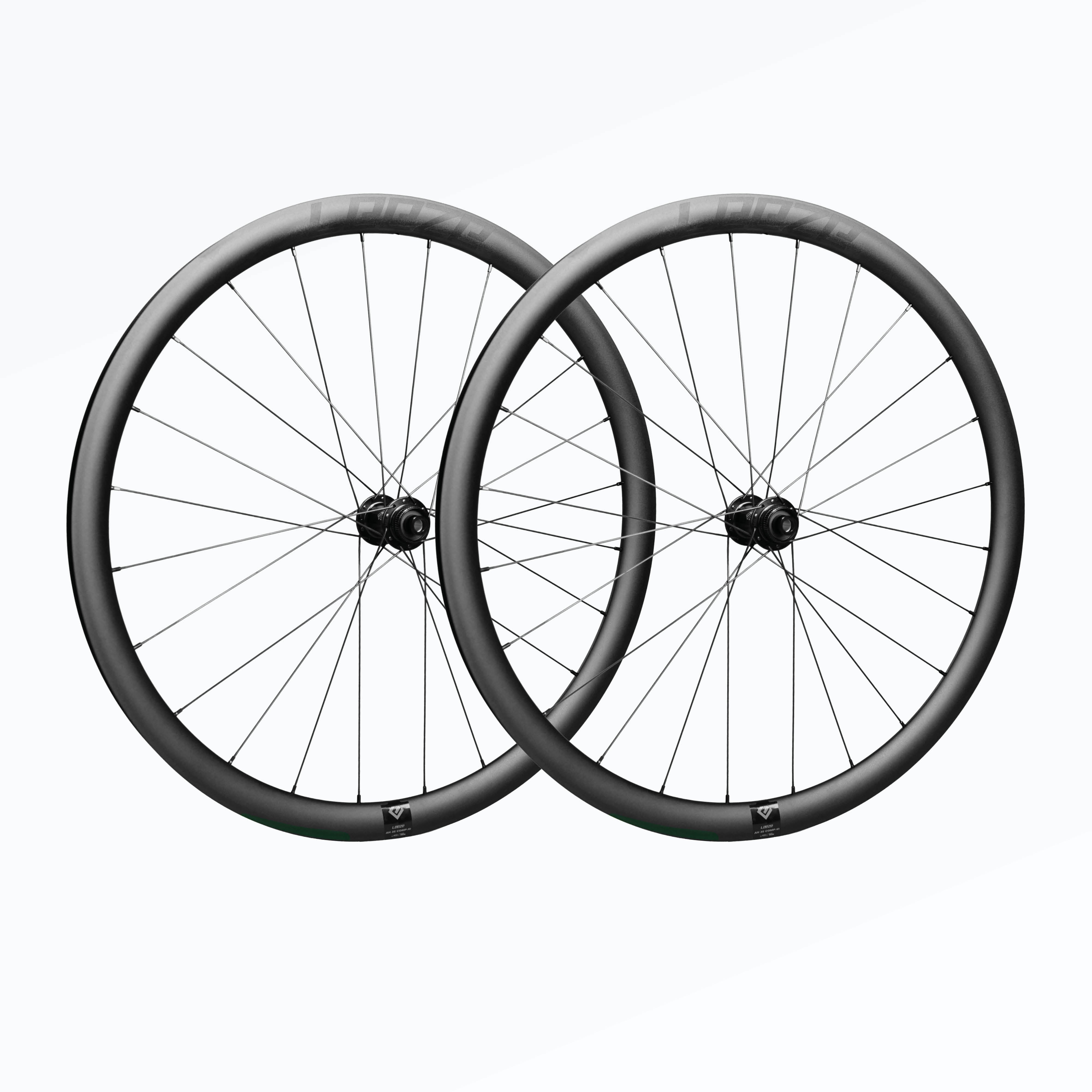

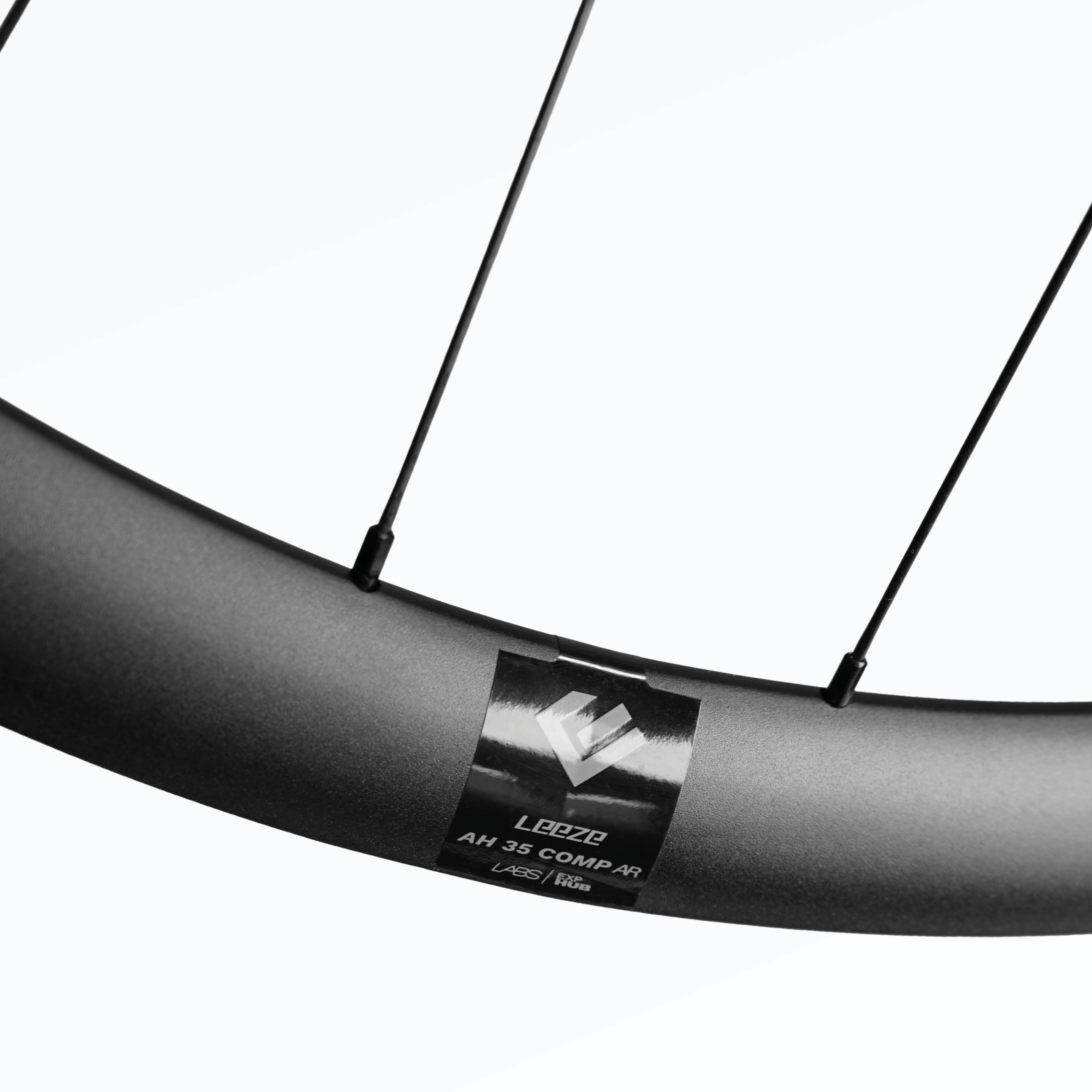

The aluminum gravel wheelset with aerodynamic benefits and a SON hub dynamo. Fast, timeless, and the aluminum upgrade for any all-road bike—AH 35 COMP AR DYNAMO. The aluminum BASIC all-purpose workhorse for road and gravel.
- A versatile bike for demanding rides on flat to hilly terrain
- Perfect tire fit thanks to hookless technology with microhooks and a 24mm opening
- Aerodynamically optimized 35 mm rim height
- All-terrain wheelset for on- and off-road use
- Reliable SON hub dynamo and durable Leeze BASIC 2.0 hub
- Very sturdy construction with sturdy blade spokes
- Best gravel setup with 35–40 mm tires
- Optimal road comfort setup with 30–32 mm tires
- Tire widths from 30 mm to 65 mm can be used (Hookless clearance must be approved by the tire manufacturer! Observe the maximum pressure!)
Information about the SON 28 12 disc center lock hub dynamo
The SON 28 is a hub dynamo approved for general use in accordance with the German Road Traffic Regulations (StVO). With a rated output of 3 watts, this power is already achieved at a riding speed of approximately 16 km/h.
This makes it ideal for situations where a lot of light is needed while driving slowly, or where other devices need to be powered or their batteries charged.
Manufacturer information from SON
Upon request, we can assemble all BASIC models with the SON hub dynamo for you. Just get in touch with us via the contact form.
| Weight1 | 1980 g (±3%) | |
| Wheel material | Aluminum | |
| Wheel type | 24-622 without hooks | |
| Braking system | Centerlock disc brake | |
| Rim height | 35 mm | |
| Wheel width | 27.7 mm | |
| jaw width | 24 mm | |
| Logos | anthracite, laser-etched | |
| Tire type | Hookless folding/clinch tires, tubeless-ready | |
| Tire widths | 30–65 mm | |
| Hub | SUN 12/28 Disc Center Lock VR & Leeze Disc BASIC 2.0 HR | |
| freewheel | Shimano 10-/11-/12-speed / SRAM 10-/11-speed, SRAM XDR 12-speed, conversion to Campagnolo and Campagnolo N3W possible, Shimano Micro Spline | |
| Axle standard | 12 mm thru-axle (12x100 mm, 12x142 mm) | |
| Number of spokes | 24/7 | |
| Spokes VR | Pillar knife spokes, crossed twice | |
| Spokes HR | Pillar knife spokes, crossed twice | |
| Weight limit | 120 kg system weight |
- Wheel set
- Valve stickers to prevent valve rattling (2 pcs.)
- 2x tubeless rim tape (already installed)
Available to match your wheelset: tubeless valves, tire sets, brake rotors, and cassettes.
Manufacturer's part number: LRS-12184-01
Here you'll find detailed instructions on how to use and maintain your wheelset:
Please observe the following safety instructions to ensure your safety and the longevity of your wheels. The accompanying or online user manual is an integral part of the product and must be read in its entirety before use.
Do not exceed the specified maximum total weight (rider + bicycle + luggage). Exceeding this limit can lead to equipment failure and cause a fall resulting in serious injury.
Do not exceed the specified maximum tire pressure. Always take into account the combination of tire, rim, and setup (reduced maximum pressures, especially for tubeless and hookless setups)! If different values apply to the wheel and tire, the lower value is always the valid maximum. Excessive pressure can cause a tire blowout and thus lead directly to crashes with serious injuries.
Use only tire types and sizes approved in the technical specifications (especially for tubeless and hookless setups). Incorrect combinations can lead to tire failure or the tire coming off the rim, which can directly cause crashes resulting in serious injuries.
The assembly, disassembly, and maintenance of safety-critical components (e.g., spokes, hub bearings, tubeless setup, brake rotors, thru-axles, cassette) must only be performed by qualified specialist personnel. Improper execution can lead to material failure and serious accidents.
Always tighten thru-axles, cassettes, and brake rotors with a torque wrench, observing the torque values specified by the respective manufacturer. Grease the freehub body before installing the cassette to prevent cogging of the sprockets. When mounting or dismounting tires, use only plastic tire levers as a last resort; never use metal levers or other hard objects to avoid damage to the rim and tire.
Only use the wheelset for its intended purposes (e.g., road bike or gravel), see link: Leeze Application Areas. Use the wheelset only with disc brakes. Do not expose the wheels to high temperatures (e.g., in a car in the sun or leaning against a radiator). Not suitable for downhill, BMX, jumps, cargo transport, or other extreme forms of use.
Regularly check your wheels for cracks, delamination, and damage to spoke holes, brake track, or rim bed. For optimal spoke tension and trueness, we recommend wheel checks every 5,000–10,000 km, every 12–24 months, or after 6 months of inactivity. If damage is suspected, stop riding immediately and contact Leeze service. In case of doubt, discontinue use immediately and consult the manufacturer or a specialist dealer.
Clean rims, spokes, and hubs regularly with mild soap and water; avoid high-pressure cleaners and direct water jets on bearings. Store wheels dry and dry them after wet rides. For extended periods of inactivity (>6 months), we recommend a bearing and wheel check. Clean and grease the freehub system regularly. For tubeless systems, replace sealant and rim tape at least twice a year to prevent damage to spoke nipples. Negligence in maintenance can lead to premature wear, malfunctions, or sudden failure during a ride, thus posing a safety risk.
Stop riding immediately and have the wheels professionally inspected, even for minor or invisible damage. Invisible cracks in the carbon can lead to sudden breakage and a crash.
