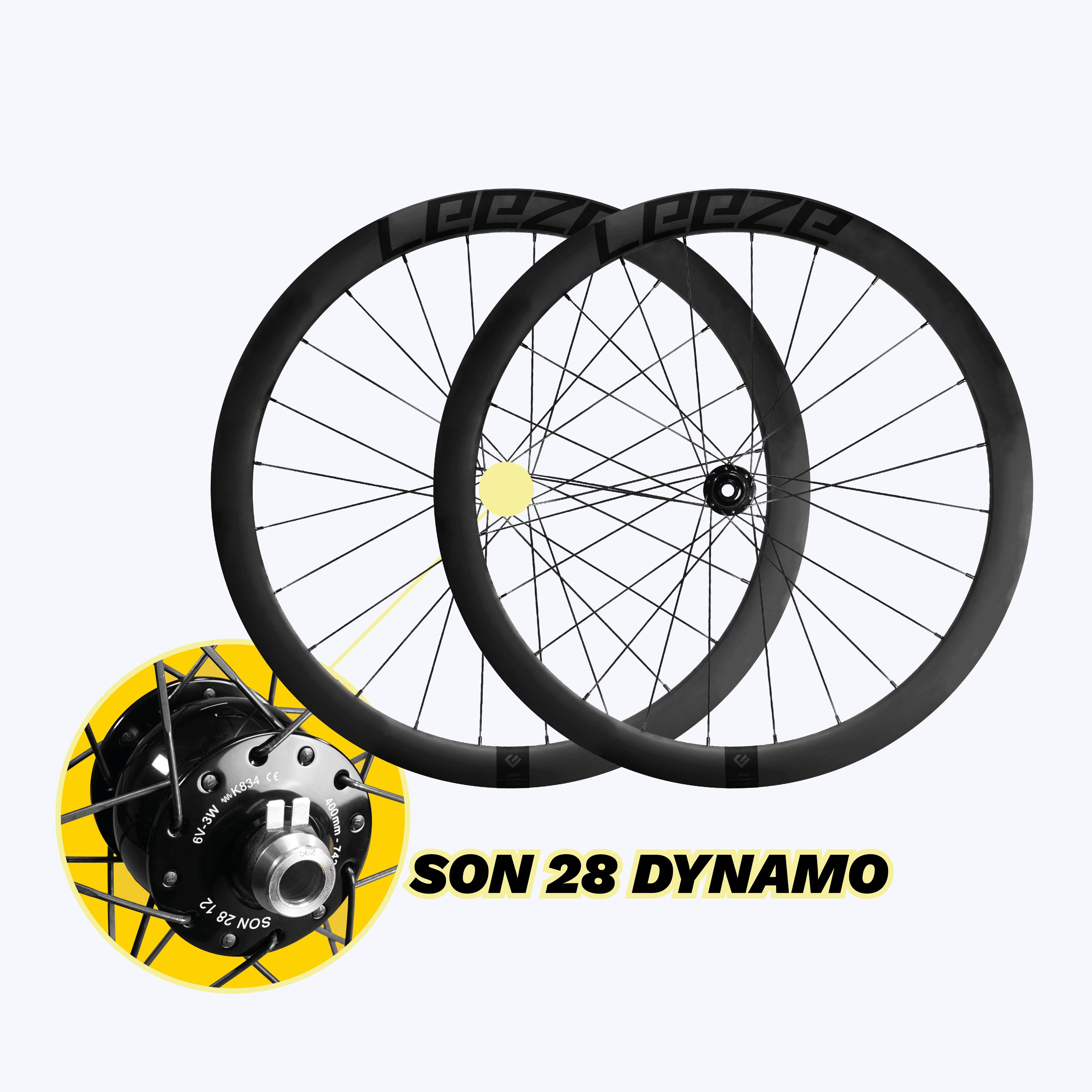

Leeze CC 45 COMP AR DYNAMO – the carbon upgrade for your all-road bike, now with an integrated SON hub dynamo.
The CC 45 COMP AR DYNAMO combines proven performance and versatility with maximum independence thanks to a high-quality power supply on the front wheel.
Whether you're riding on the road, off-road, or on gravel—the CC 45 COMP AR DYNAMO offers you maximum flexibility. Perfect for long distances, commuting, or bikepacking, with power for lights or GPS—all without worrying about the battery.
With a 45 mm rim height, 23 mm rim width, and understated design, the CC 45 COMP AR DYNAMO is the ultimate all-rounder for any terrain—now featuring a reliable power source on the front wheel thanks to the SON hub dynamo.
- Optimal comfort setup for road riding with 30–32 mm wide tires
- Best Gravel setup with 40 mm wide tires
- Tire widths ranging from 28 to 50 mm can be used
- Integrated SON 28 hub dynamo (6V/3W) with high efficiency and parking light function
- Ideal for lighting systems and USB chargers on long drives
- Low-maintenance, durable, and weather-resistant – designed for everyday use

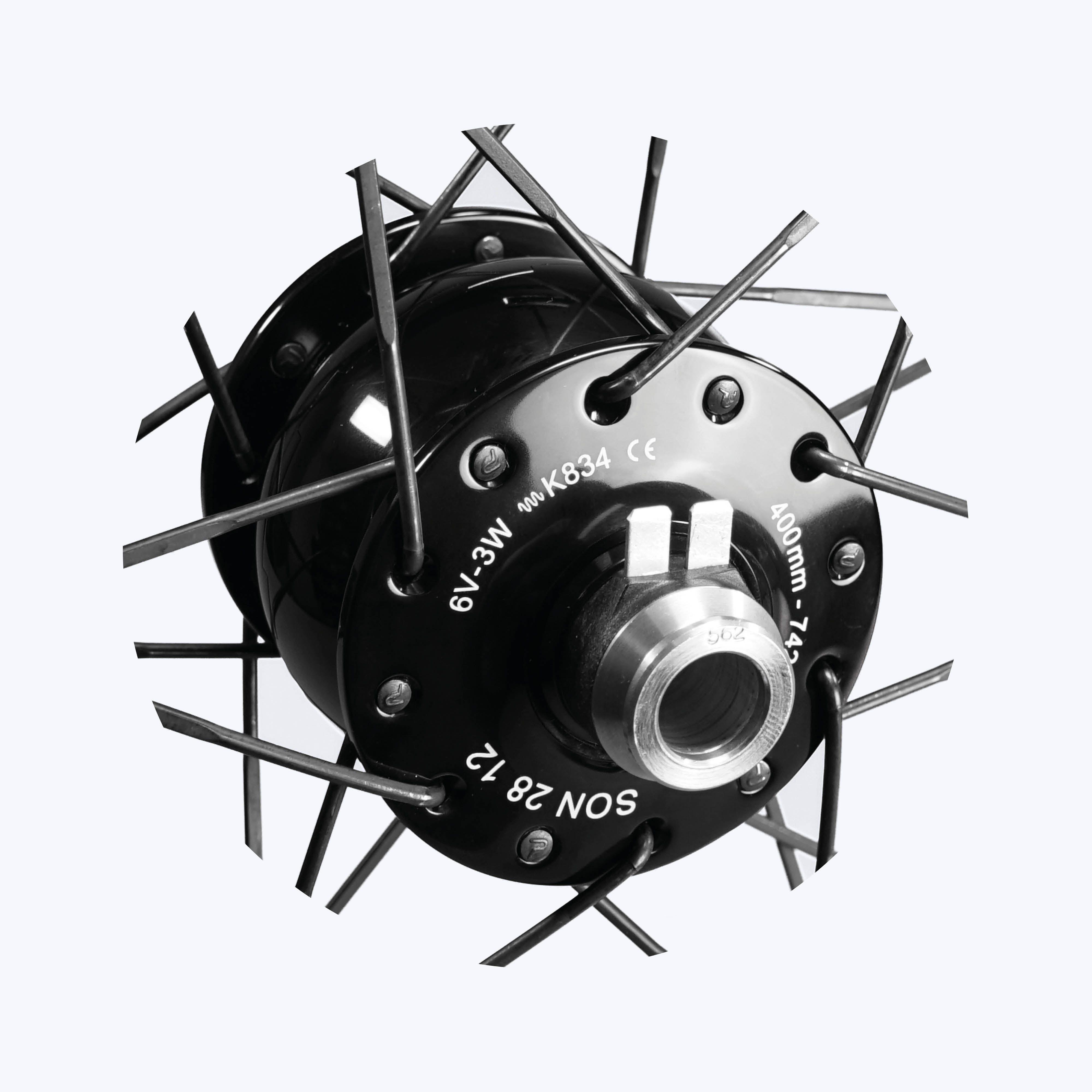

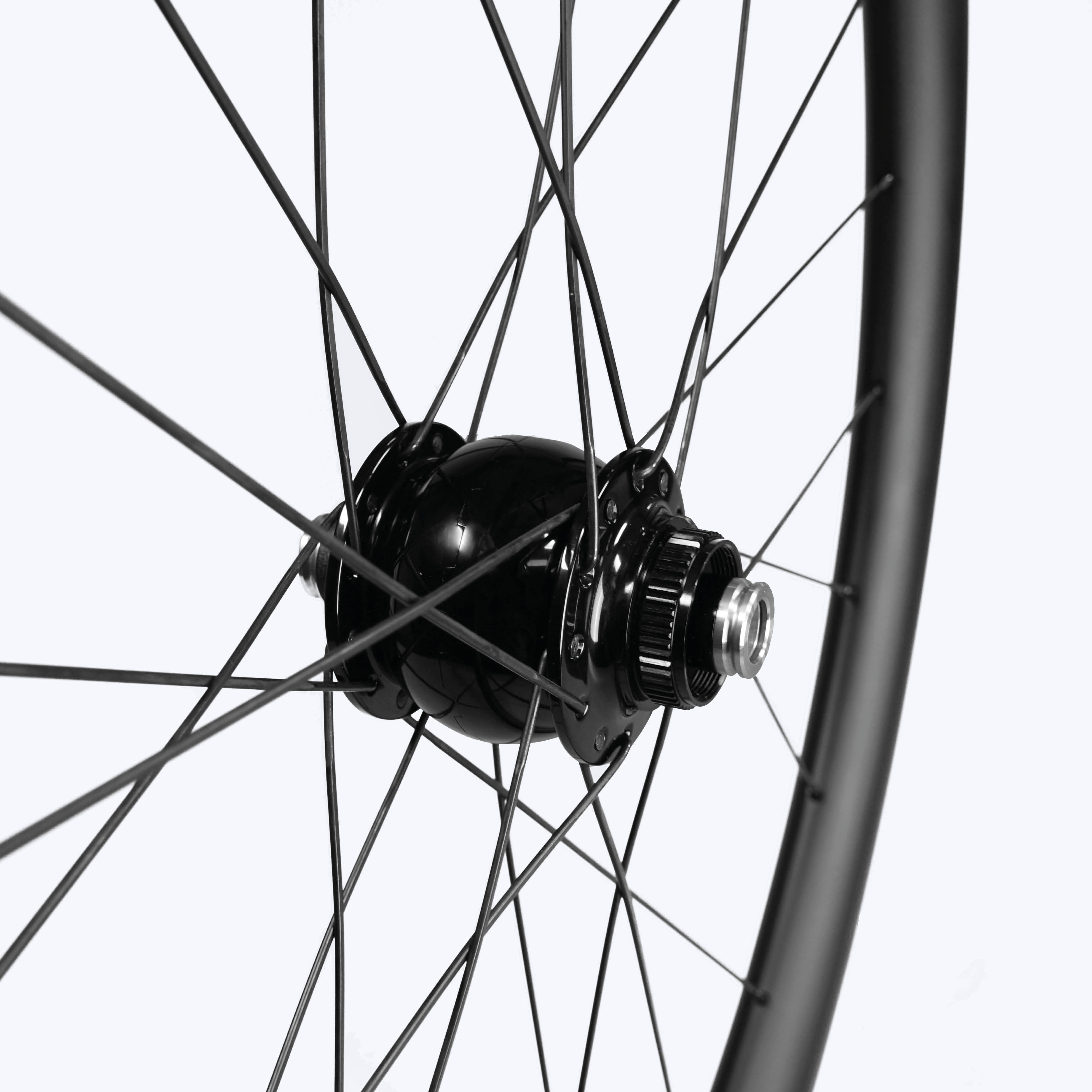

The built-in SON 28 hub dynamo impresses with its exceptionally high efficiency and minimal rolling resistance. Thanks to its parking light function, you remain visible even when stopped—ideal for commuters and adventurers. Compatible with standard lighting systems and USB chargers.
More information about the SON 28 12 disc center lock hub dynamo
| Weight1 | 1,890 g (±5%) | |
| Wheel material | Carbon | |
| Wheel type | 23-622 with hook | |
| Braking system | Centerlock disc brake | |
| Rim height | 45 mm | |
| Wheel width | 31 mm | |
| jaw width | 23 mm | |
| Logos | black, painted | |
| Tire type | Folding/clinchers, tubeless-ready | |
| Tire widths | 28–50 mm | |
| Hub | SUN 12/28 Disc Center Lock VR & Leeze Disc BASIC 2.0 HR | |
| freewheel | Shimano 10-/11-/12-speed / SRAM 10-/11-speed, SRAM XDR 12-speed, Shimano Micro Spline, conversion to Campagnolo and Campagnolo N3W possible | |
| Axle standard | 12 mm thru-axle (12x100 mm, 12x142 mm) | |
| Number of spokes | 24/7 | |
| Spokes VR | Sapim CX-Leader, 2x crossed | |
| Spokes HR | Sapim CX-Leader, 2x crossed | |
| Weight limit | 120 kg system weight |
- Wheel set
- Valve stickers to prevent valve rattling (2 pcs.)
- 2x tubeless rim tape (already installed)
Available to match your wheelset: tubeless valves, tire sets, brake rotors, and cassettes.
Leeze GmbH
Hohenholter Straße 25
48329 Havixbeck
Germany
info@leeze.de
Manufacturer's part number: LRS-21179-01
Here you'll find detailed instructions on how to use and maintain your wheelset:
Please observe the following safety instructions to ensure your safety and the longevity of your wheels. The accompanying or online user manual is an integral part of the product and must be read in its entirety before use.
Do not exceed the specified maximum total weight (rider + bicycle + luggage). Exceeding this limit can lead to equipment failure and cause a fall resulting in serious injury.
Do not exceed the specified maximum tire pressure. Always consider the combination of tire, rim, and setup (reduced maximum pressures, especially for tubeless and hookless setups). If the wheel and tire have different maximum values, the lower value always applies as the valid maximum. Excessive pressure can cause tire blowouts, leading directly to crashes and severe injuries.
Only use tire types and sizes approved in the datasheet (especially for tubeless and hookless setups). Incorrect combinations can lead to tire defects or tire blow-off, directly causing crashes and severe injuries.
The assembly, disassembly, and maintenance of safety-critical components (e.g., spokes, hub bearings, tubeless setup, brake rotors, thru-axles, cassette) must only be performed by qualified specialist personnel. Improper execution can lead to material failure and serious accidents.
Always tighten thru-axles, cassettes, and brake rotors with a torque wrench, observing the torque values specified by the respective manufacturer. Grease the freehub body before installing the cassette to prevent cogging of the sprockets. When mounting or dismounting tires, use only plastic tire levers as a last resort; never use metal levers or other hard objects to avoid damage to the rim and tire.
Only use the wheelset for its intended purposes (e.g., road bike or gravel), see link: Leeze Application Areas. Use the wheelset only with disc brakes. Do not expose the wheels to high temperatures (e.g., in a car in the sun or leaning against a radiator). Not suitable for downhill, BMX, jumps, cargo transport, or other extreme forms of use.
Regularly check your wheels for cracks, delamination, and damage to spoke holes, brake track, or rim bed. For optimal spoke tension and trueness, we recommend wheel checks every 5,000–10,000 km, every 12–24 months, or after 6 months of inactivity. If damage is suspected, stop riding immediately and contact Leeze service. In case of doubt, discontinue use immediately and consult the manufacturer or a specialist dealer.
Clean rims, spokes, and hubs regularly with mild soap and water; avoid high-pressure cleaners and direct water jets on bearings. Store wheels dry and dry them after wet rides. For extended periods of inactivity (>6 months), we recommend a bearing and wheel check. Clean and grease the freehub system regularly. For tubeless systems, replace sealant and rim tape at least twice a year to prevent damage to spoke nipples. Negligence in maintenance can lead to premature wear, malfunctions, or sudden failure during a ride, thus posing a safety risk.
Stop riding immediately and have the wheels professionally inspected, even for minor or invisible damage. Invisible cracks in the carbon can lead to sudden breakage and a crash.
